Thelio Mira (External Overview)

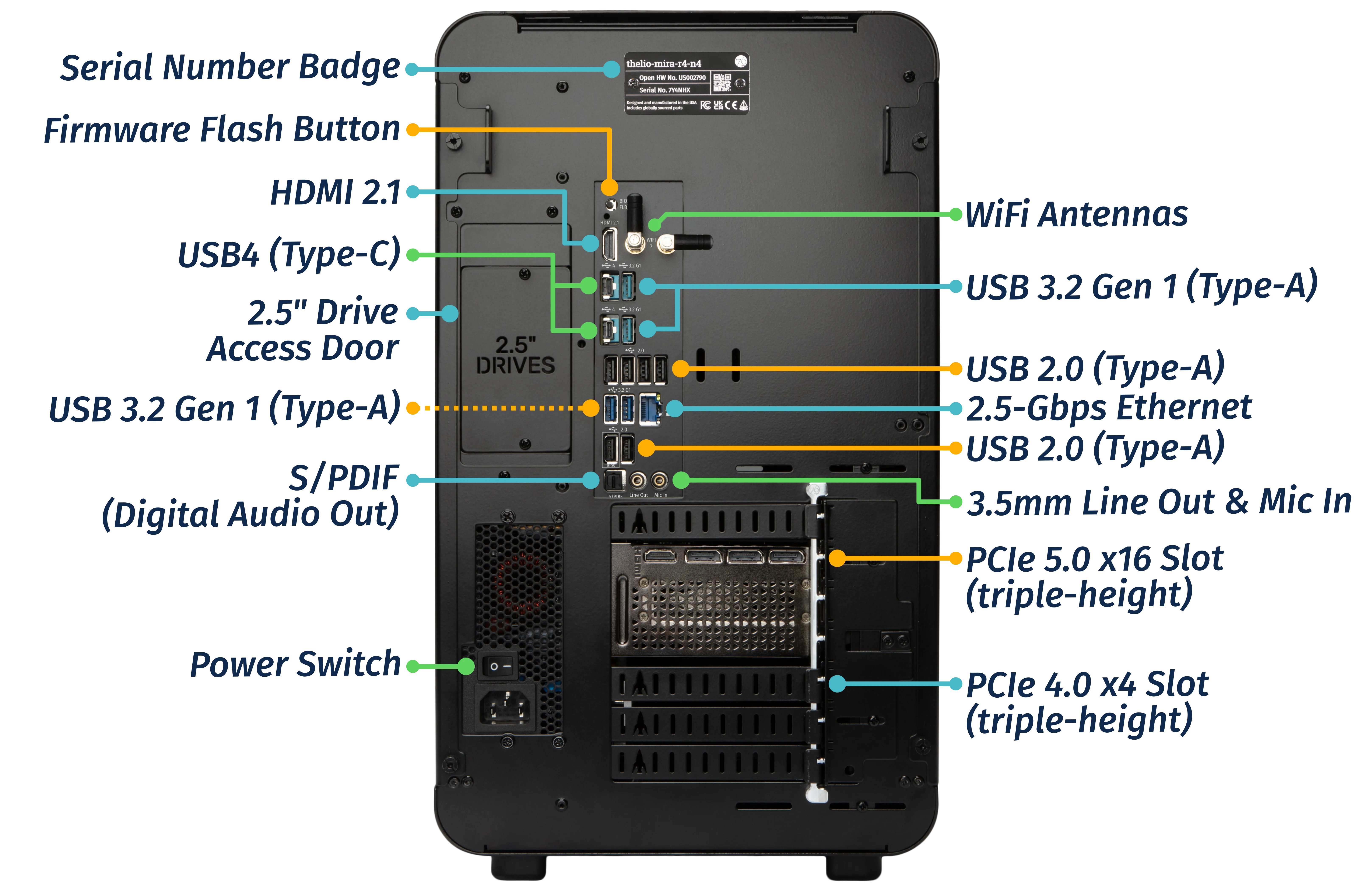

Back:

Back Ports

WiFi Antenna Orientation:

The orientation of the WiFi antennas may vary. Offset them to avoid interference.

Power Switch Guide:

1: On
0: Off

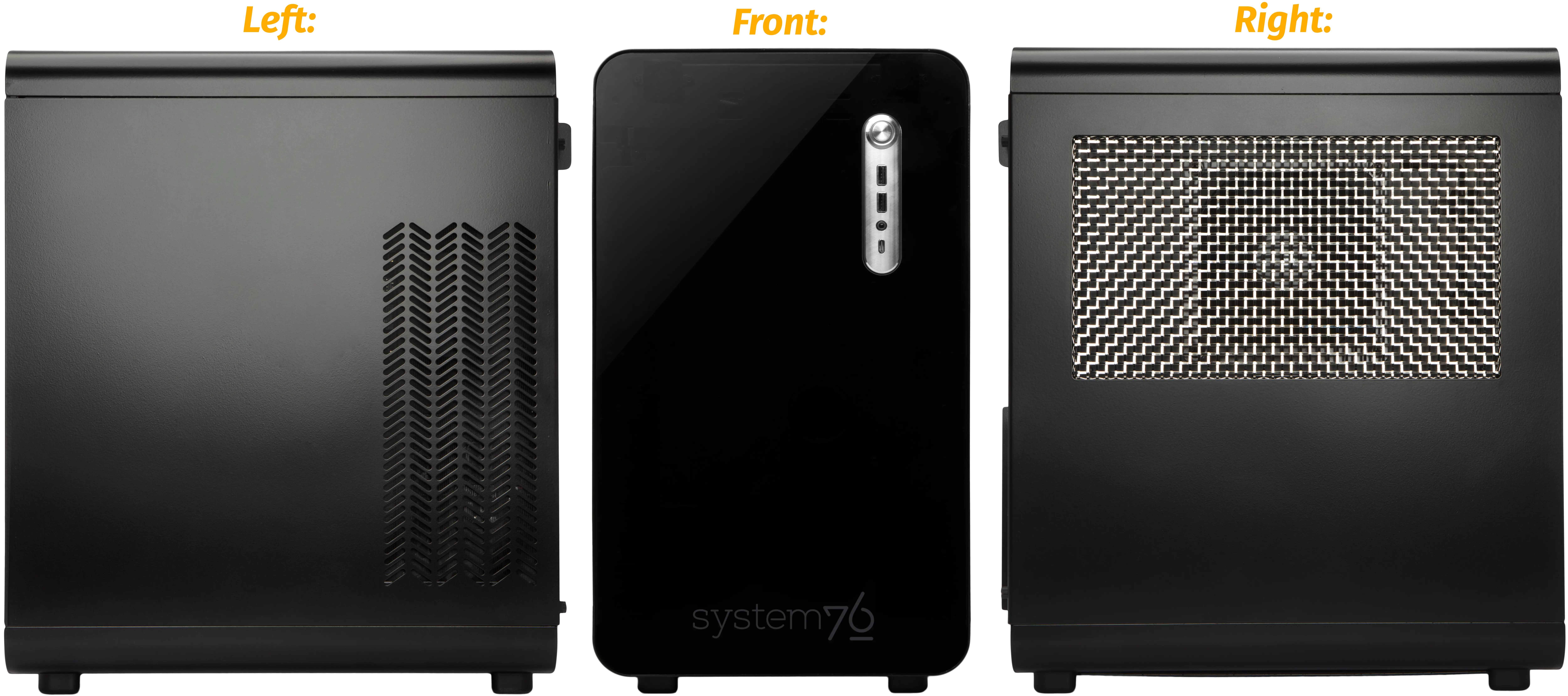

Front/sides:

Front & Side Views

Front Accent I/O:

From top to bottom:
- Power button
- 2x USB 3.2 Gen 1 (Type-A)
- 3.5mm Headphone/Mic Combo Jack
- USB 3.2 Gen 2 (Type-C)

Top/bottom:

Top & Bottom Views
