Thelio Mega (Internal Overview)

Left side overview:

Chassis components:

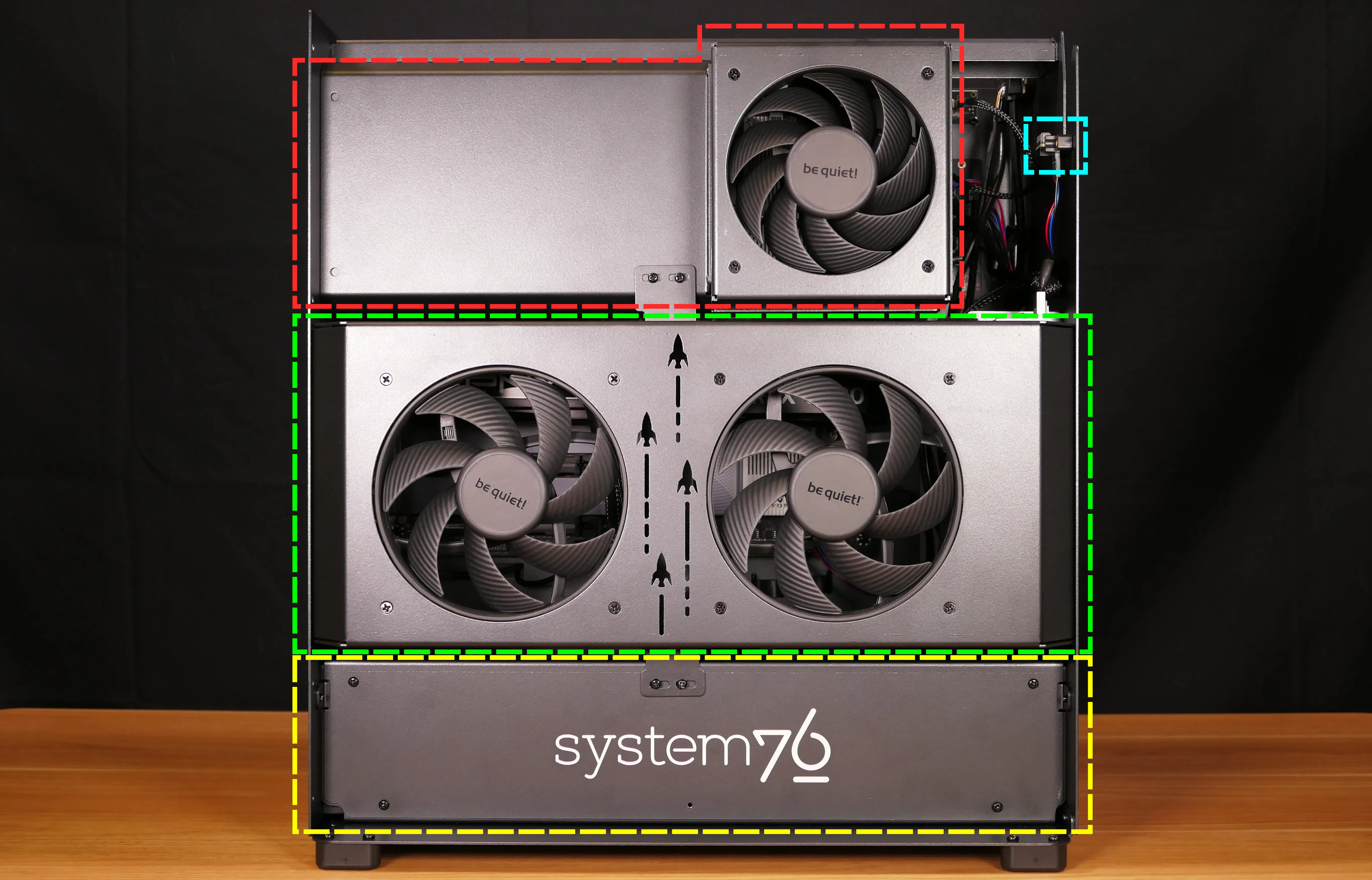

Internal overview (left side - chassis)

  • CPU duct is highlighted in red
  • Power button receptacle cutout is highlighted in cyan
  • Side fan mount is highlighted in green
  • PSU bracket is highlighted in yellow

Electronic components:

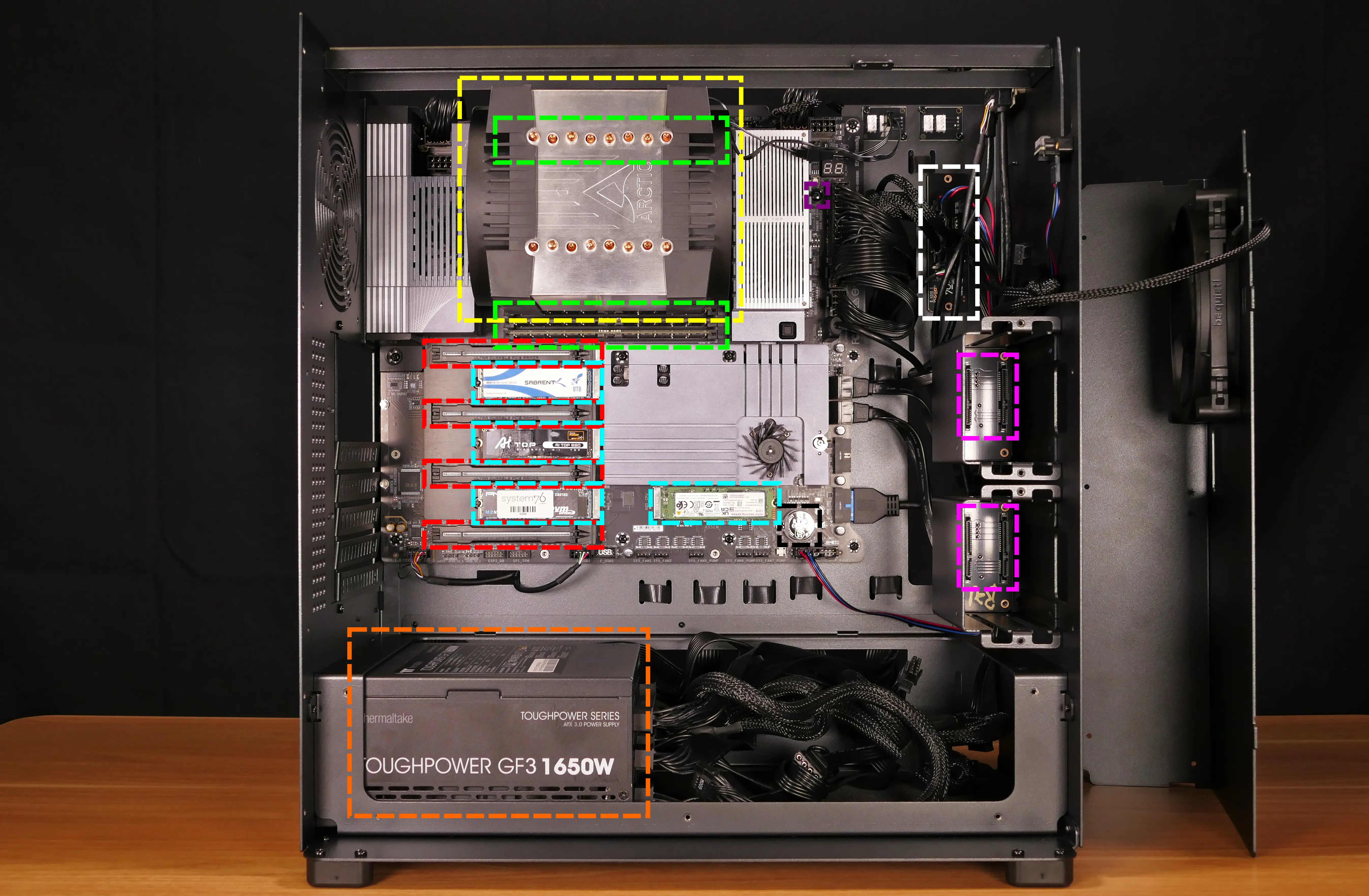

Internal overview (left side - electronics)

  • CPU heatsink is highlighted in yellow
  • RAM slots are highlighted in green
    • RAM slots are partially obstructed by the CPU heatsink
  • PCIe 5.0 x16 slots are highlighted in red
    • Primary GPU slot is the top slot
  • M.2 slots are highlighted in cyan
  • 2.5" SATA slots are highlighted in pink
  • Thelio Io daughterboard is highlighted in white
  • Motherboard power button is highlighted in purple
  • CMOS battery is highlighted in black
  • Power supply is highlighted in orange

Right side overview:

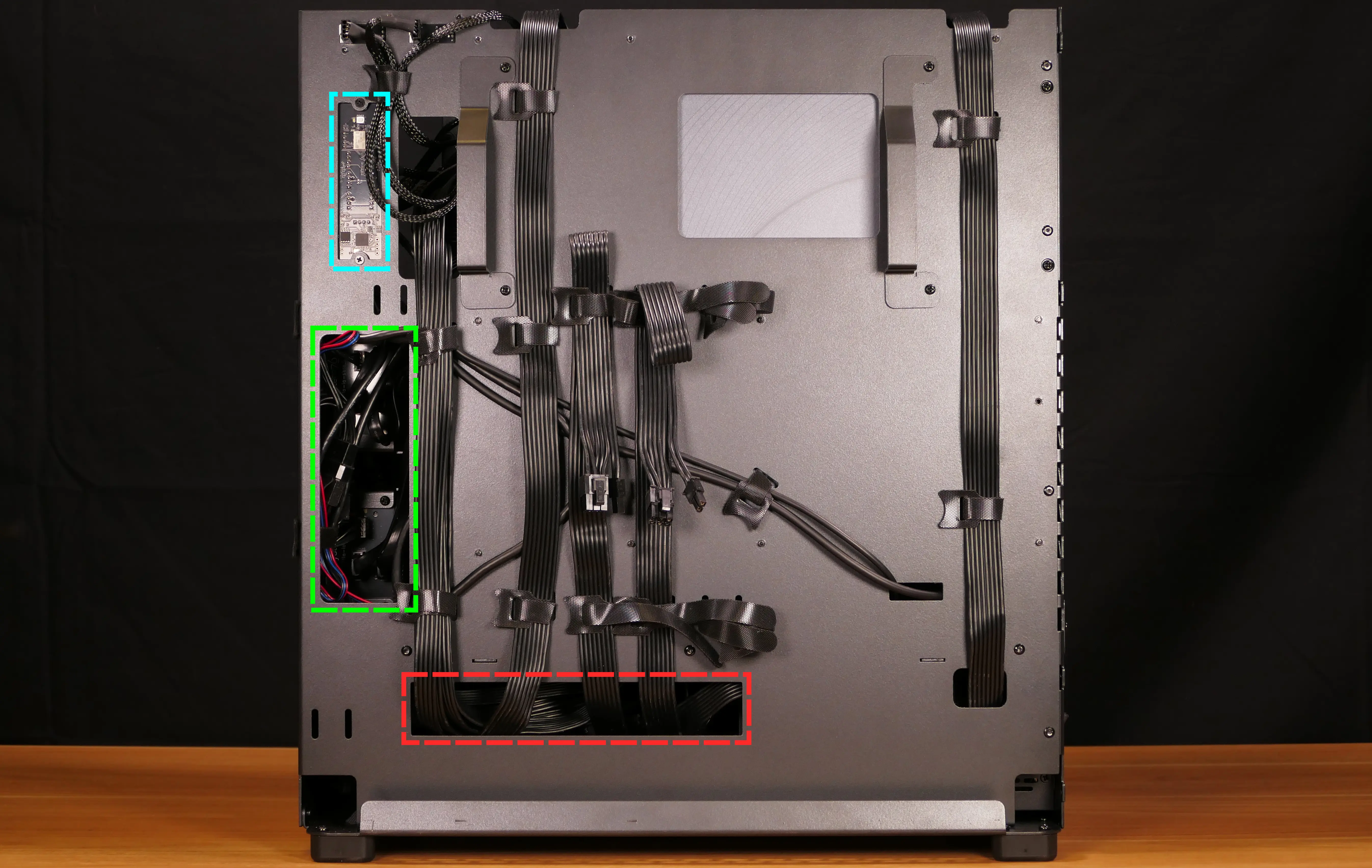

Internal overview (right side)

  • Back of Thelio Io board is highlighted in cyan
    • Internal power button is on the Thelio Io board
  • SATA backplane access cutout is highlighted in green
  • Power supply access cutout is highlighted in red

Front side overview:

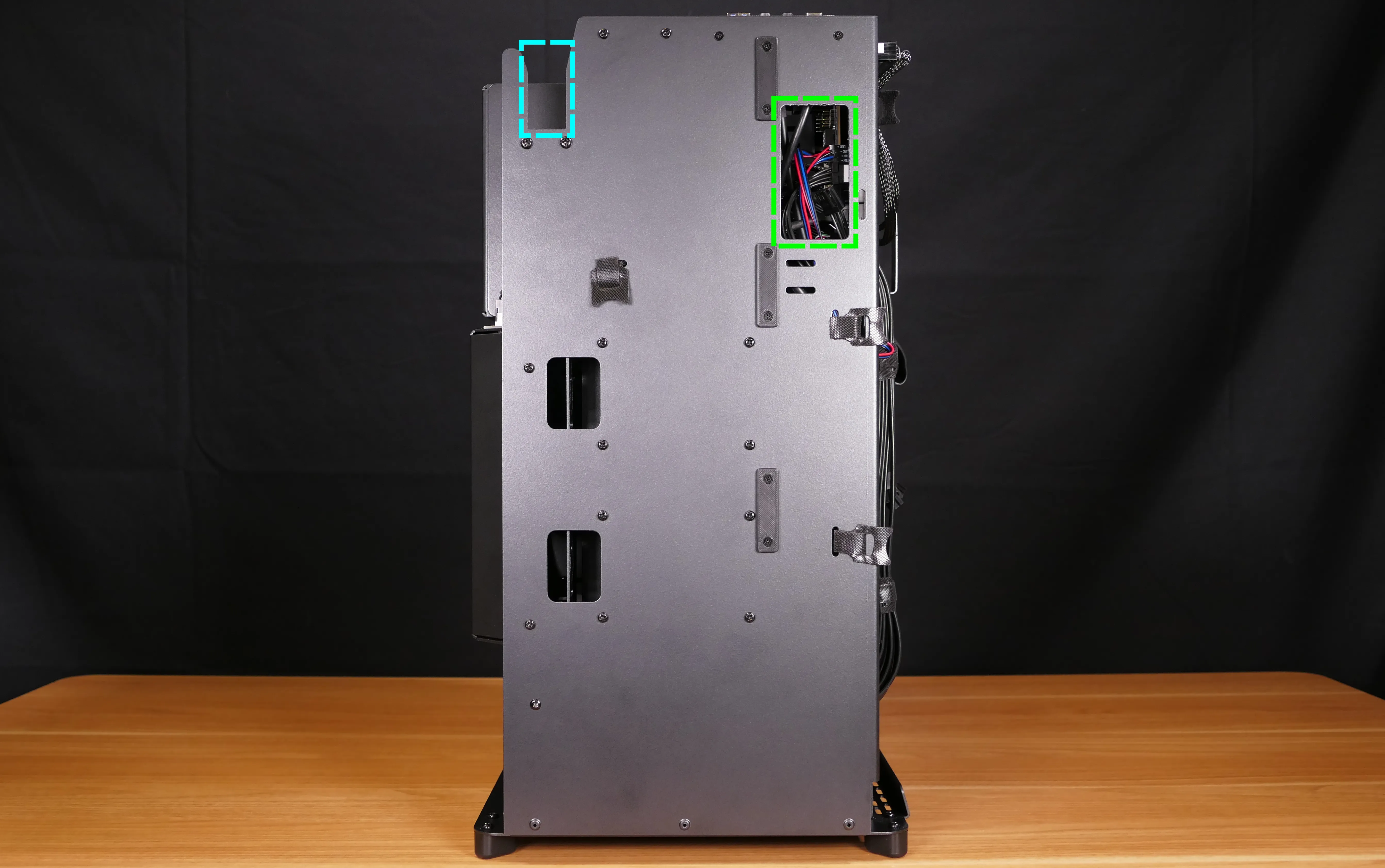

Internal overview (front side)

  • Power button receptacle cutout is highlighted in cyan
  • Thelio Io connector access cutout is highlighted in green

Top overview:

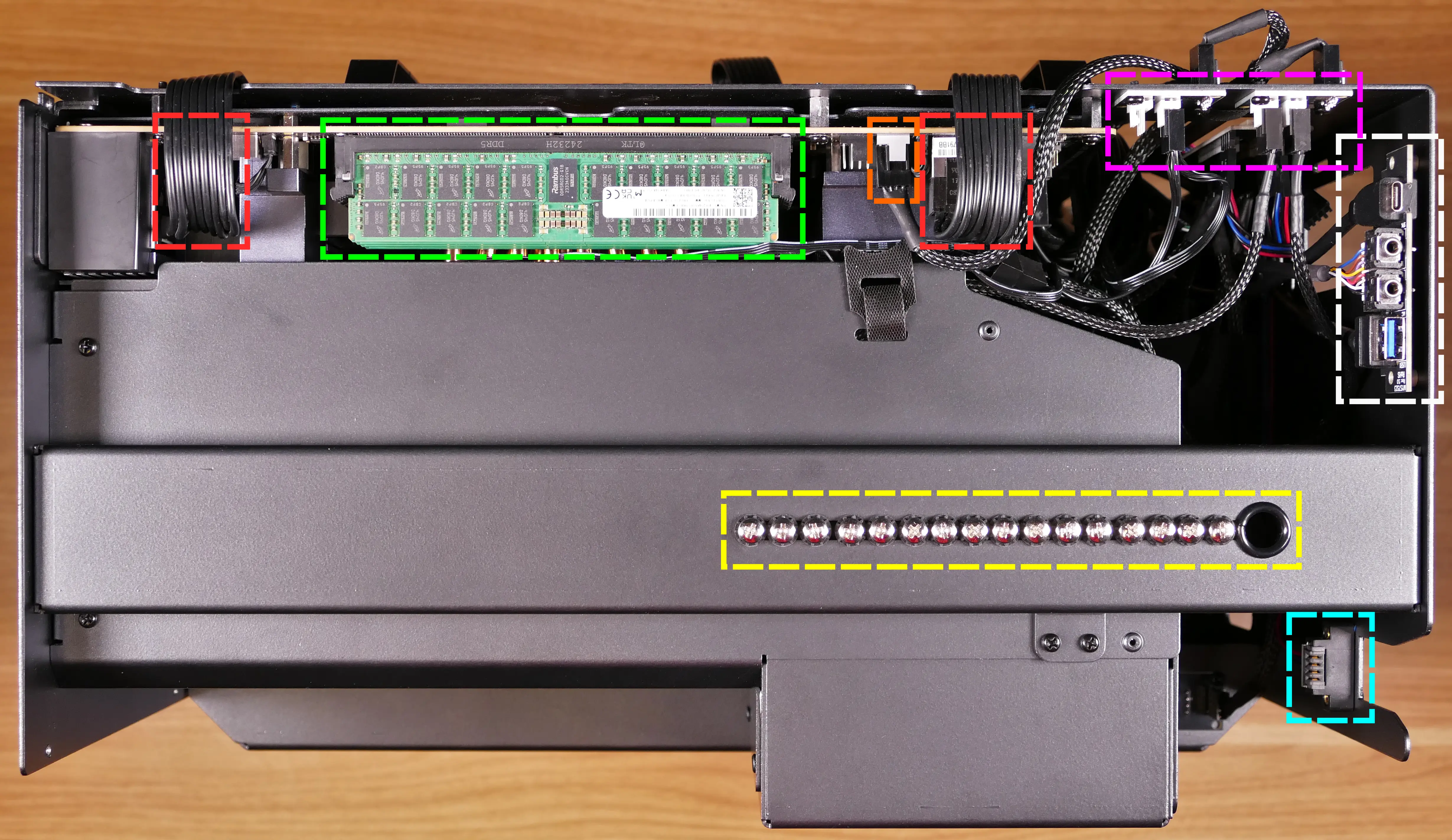

Internal overview (top)

  • CPU power connectors are highlighted in red
    • Connect to power supply
  • Top RAM slot is highlighted in green
  • CPU fan input header is highlighted in orange
    • Connects to Thelio Io board
  • CPU fan output splitters are highlighted in pink
    • Connect to the CPU fans and the Thelio Io board
  • Top I/O board is highlighted in white
    • Connects to motherboard
  • 2.5" drive screws are highlighted in yellow
  • Power button receptacle is highlighted in cyan
    • Connects to Thelio Io board

See the repairs page for detailed information about installing or replacing components.
