Oryx Pro (oryp13)

• External Overview
• Internal Overview
• Parts & Repairs

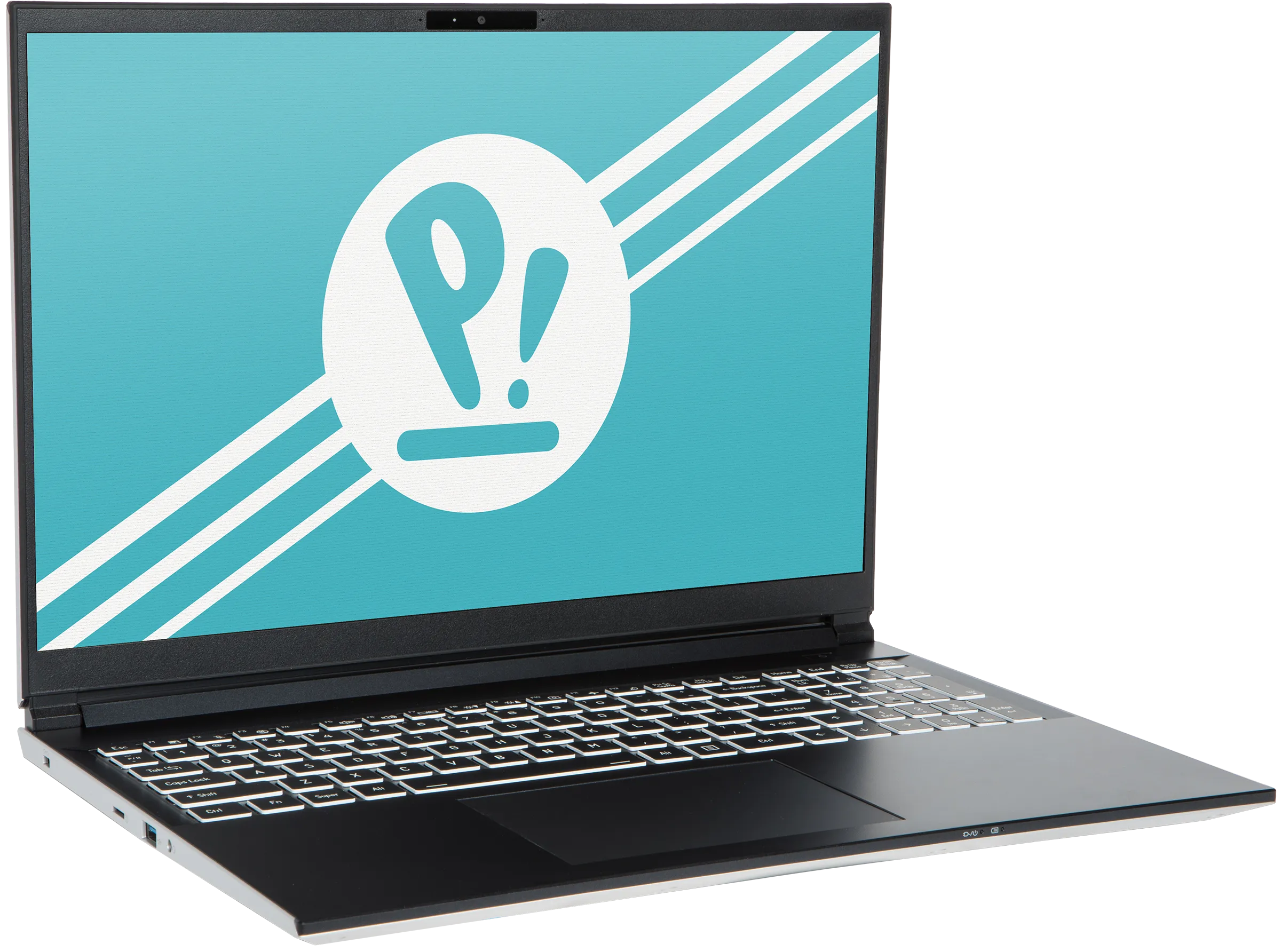

The System76 Oryx Pro is a laptop with the following specifications:

• CPU
  • Supports AMD Ryzen AI 300 Series (Strix Point) CPUs
    • Ryzen AI 9 HX 370
      • TDP: 28W
• BIOS
  • XMC XM25RU256CXIQT10S flash chip
    • WSON-8 form factor
  • Programmed with System76 firmware (non-open)
• EC
  • ITE IT5570E
  • Programmed with non-open EC firmware
• Graphics
  • Dedicated GPU: NVIDIA GeForce RTX 5070
    • TGP: 105W
  • Integrated GPU: AMD Radeon 890M
  • eDP display options:
    • 16" 2560x1600@240Hz LCD
      • LCD panel: BOE NE160QDM-NZA (or equivalent)
        • Brightness: 500 nits (cd/m²)
        • Color coverage:
          • sRGB: 99%
          • DCI-P3: 78%
  • External video output:
    • 1x HDMI 2.1
    • 2x DisplayPort 2.1 over USB-C
• Memory
  • Up to 96GB (2x48GB) dual-channel DDR5 SO-DIMMs @ 5600 MHz
• Networking
  • Gigabit Ethernet
  • M.2 PCIe/CNVi WiFi/Bluetooth: Intel AX210
    • WiFi 6E
    • Bluetooth 5.3
• Power
  • 180W DC-in port
    • Barrel size: 5.5mm (outer), 2.5mm (inner)
  • Included AC adapter: FSP FSP180-ACBU3
  • 80Wh 4-cell battery
• Sound
  • Internal speakers & microphone
  • Combined headphone & microphone 3.5mm jack
  • HDMI, USB-C DisplayPort audio
• Storage
  • 1x M.2 (PCIe NVMe Gen 4 x4)
  • 1x M.2 (PCIe NVMe Gen 4 x2)
  • MicroSD card reader
• USB
  • 2x USB4 Type-C
    • Both ports support DisplayPort over USB-C
    • Back port supports USB-C charging (USB-PD) for offline charging
  • 1x USB 3.2 Gen 2 Type-C
  • 1x USB 3.2 Gen 1 Type-A
• Dimensions
  • 35.81cm x 25.86cm x 1.98cm, 2.25kg
