Oryx Pro (Internal Overview)

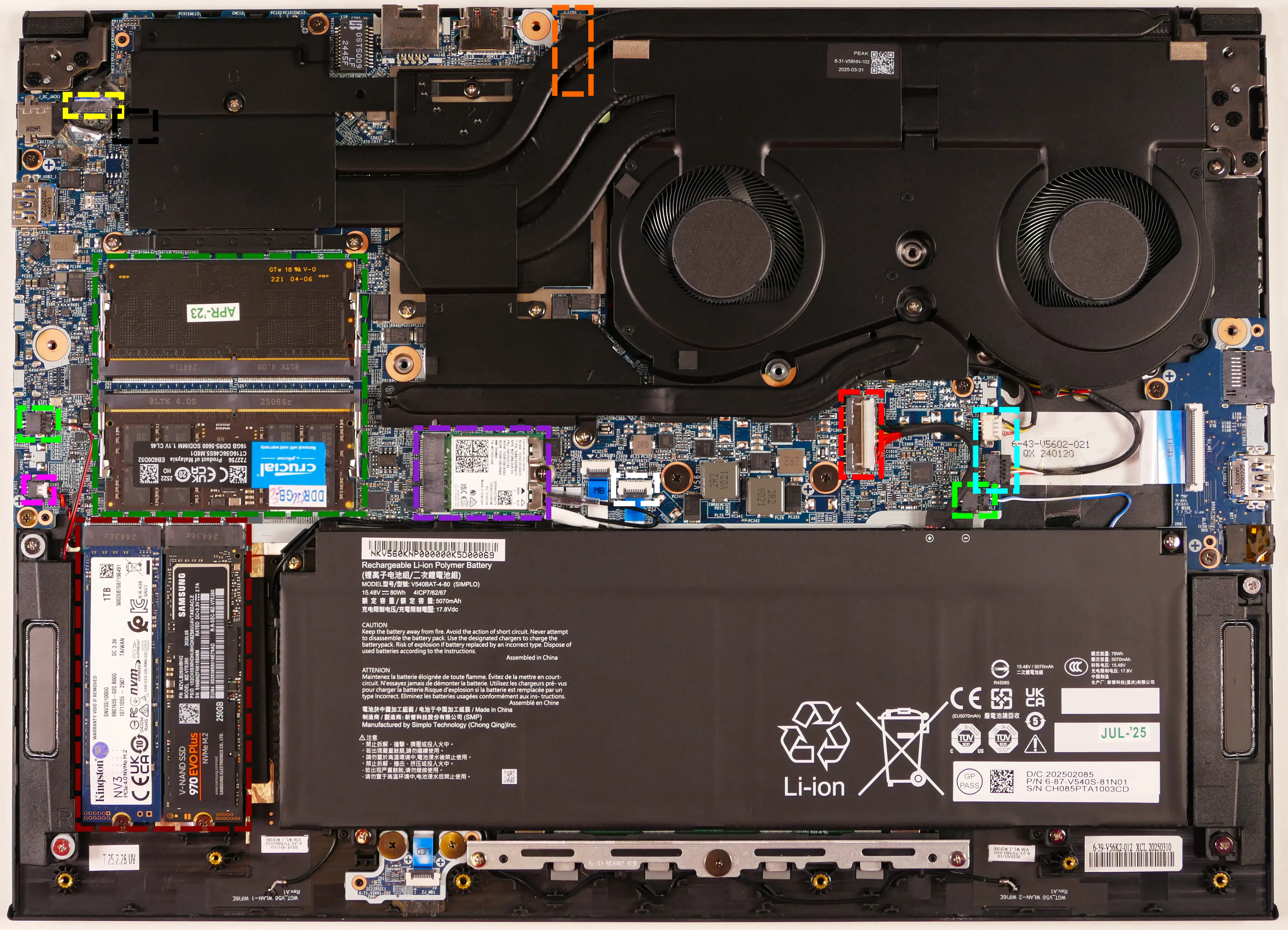

Bottom components and connectors:

Internal Components

LCD panel connector is highlighted in orange
- LCD panel connector is partially underneath the heatsink
Webcam/microphone connector is highlighted in yellow
BIOS flash chip (U38) is highlighted in black
- BIOS flash chip is partially underneath the heatsink
RAM is highlighted in dark green
Speaker connectors are highlighted in light green
Fan connectors are highlighted in cyan
Battery connector is highlighted in red
Touchpad connector is highlighted in white
Wireless card is highlighted in purple
CMOS battery connector is highlighted in pink
- CMOS battery is underneath SSD slot 2 (closest to the main battery)
M.2 SSDs are highlighted in maroon
- Slot 1 (closest to side of machine) supports PCIe NVMe Gen 4 x4
- Slot 2 (closest to battery) supports PCIe NVMe Gen 4 x2

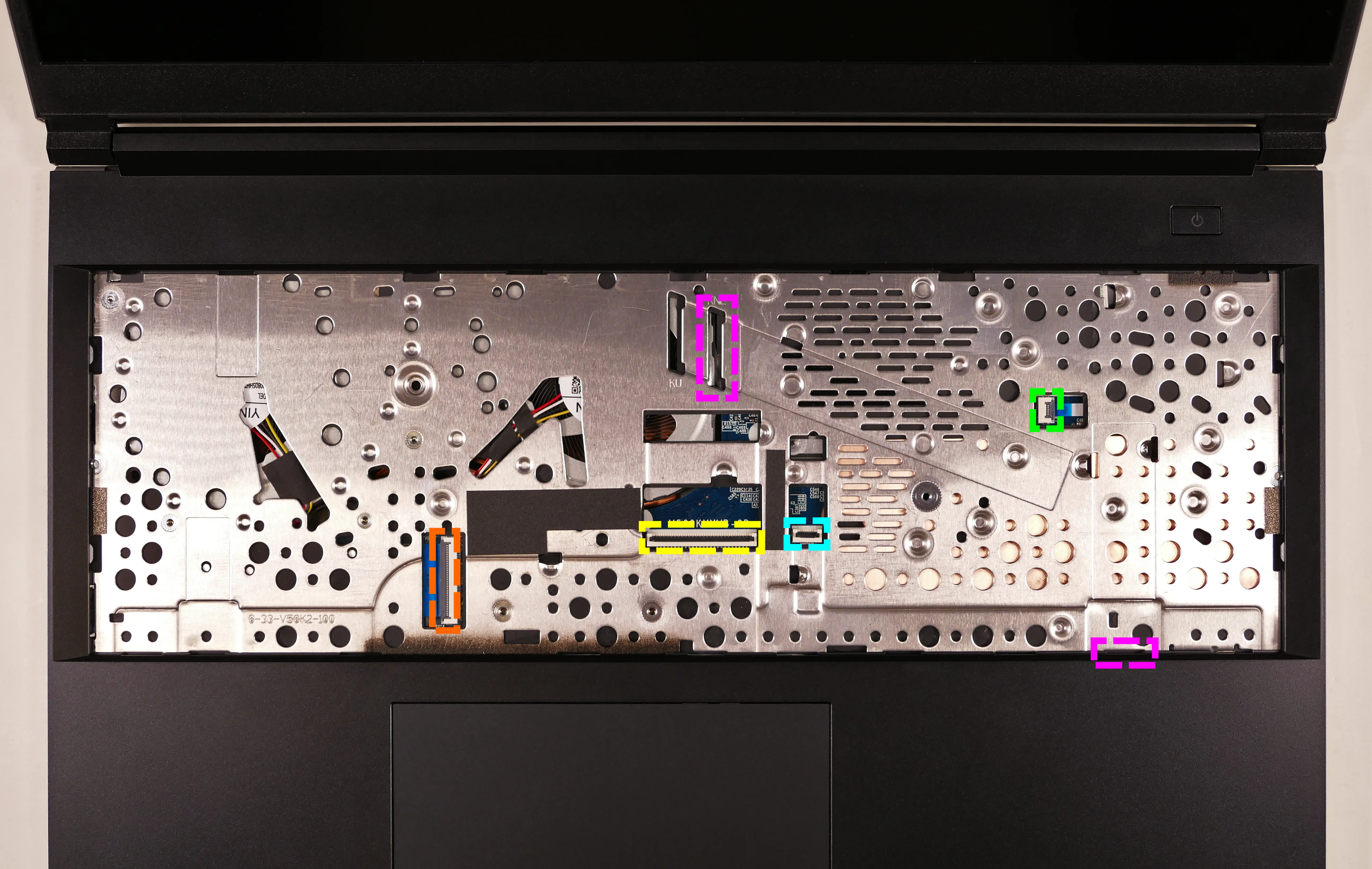

Under-Keyboard Connectors
