Meerkat (meer10)

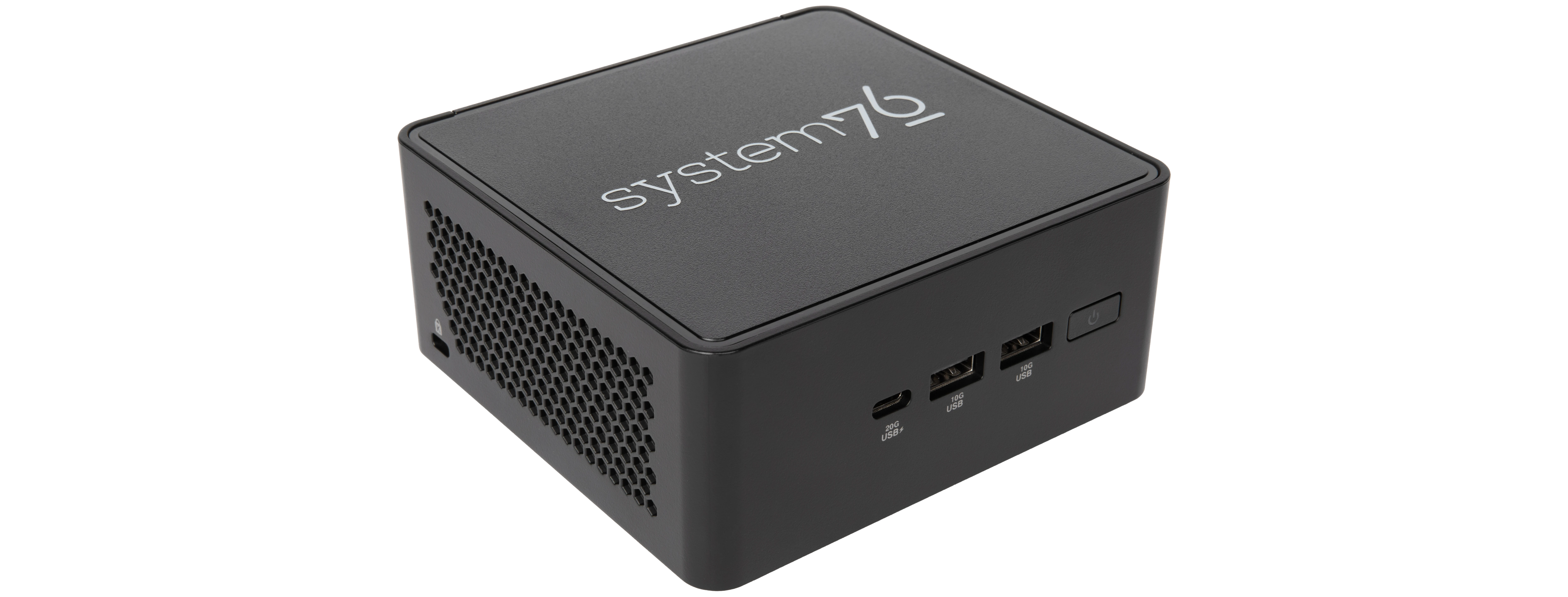

The System76 Meerkat is a desktop with the following specifications:
- CPU
- Supports Intel Core Ultra 2nd generation (Arrow Lake) and Core 14th generation (Raptor Lake) CPUs
- Graphics
- GPU: Dependent on CPU
- Core Ultra 7 255H: Intel Arc 140T GPU
- Requires 2 SO-DIMMs for Arc graphics
- Core Ultra 5 225H: Intel Arc 130T GPU
- Requires 2 SO-DIMMs for Arc graphics
- Core 3 100U: Intel Graphics (integrated)
- Core Ultra 7 255H: Intel Arc 140T GPU
- Video output:
- 2x HDMI 2.1
- 2x DisplayPort 2.1 over USB-C
- GPU: Dependent on CPU
- Memory
- Up to 96GB (2x48GB) Dual Channel DDR4 SO-DIMMs @ 5600 MHz
- Networking
- 1x 2.5-Gigabit Ethernet (built-in)
- 1x 2.5-Gigabit Ethernet (optional add-on)
- 1x WiFi 7
- Power
- Core Ultra 7 and Ultra 5 models:
- 120W (19V, 6.32A) DC-in port
- Barrel size: 5.5mm (outer), 2.5mm (inner)
- 120W (19V, 6.32A) DC-in port
- Core 3 model:
- 90W (19V, 4.74A) DC-in port
- Barrel size: 5.5mm (outer), 2.5mm (inner)
- 90W (19V, 4.74A) DC-in port
- Core Ultra 7 and Ultra 5 models:
- Sound
- 7.1-channel digital audio output over HDMI and USB-C
- Storage
- Core Ultra 7 and Ultra 5 models:
- 1x M.2 (2280) PCIe NVMe Gen 5
- 1x M.2 (2242) PCIe NVMe Gen 4
- Expansion module adapts to 2280
- Core 3 model:
- 1x M.2 (2280) PCIe NVMe Gen 4
- 1x M.2 (2242) PCIe NVMe Gen 4
- Expansion module adapts to 2280
- Core Ultra 7 and Ultra 5 models:
- USB
- 2x USB4 Type-C with Thunderbolt 4
- Both ports support DisplayPort over USB-C
- 1x USB 3.2 Gen 2 Type-A
- 1x USB 2.0 Type-A
- 2x USB4 Type-C with Thunderbolt 4
- Dimensions
- 11.7cm x 11.2cm x 5.4cm
