Eland 1U (elan1-r3)

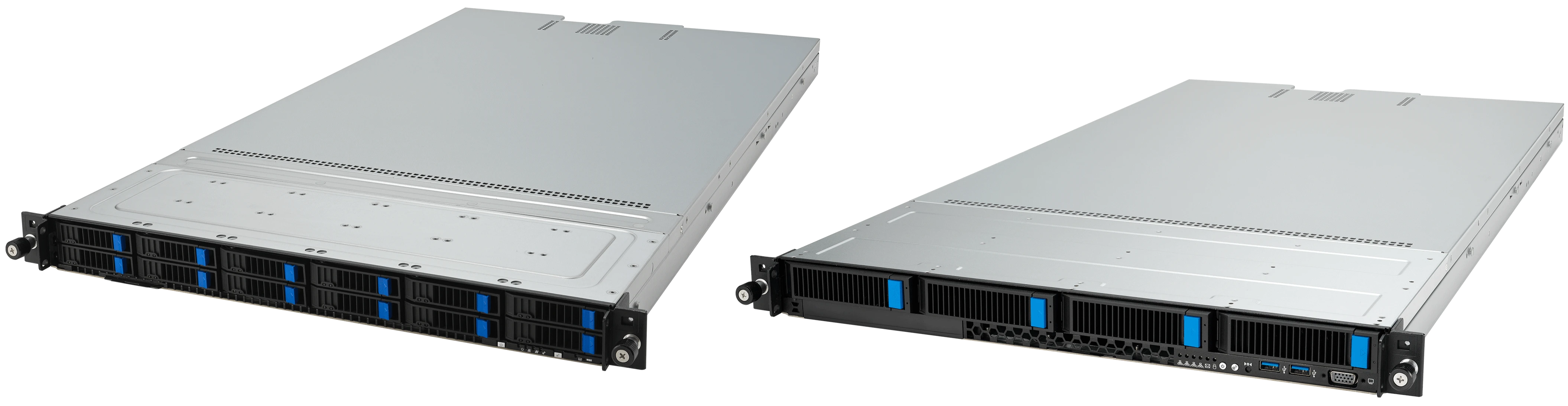

The System76 Eland 1U is a rack-mounted server. The R3 model code indicates the third revision based on an AMD platform. This model has the following specifications:

• Chassis (depending on configuration)
  • Asus RS500A-E12-RS12U
  • Asus RS500A-E12-RS4U
• CPU options
  • Supports 1x AMD EPYC 9004-series processor
• Memory
  • Up to 1536GB (24x64GB) ECC DDR4 @ 4800 MHz
• Storage
  • RS12U model:
    • 12 x 2.5" SATA/NVMe hot-swappable HDD/SSD bays
  • RS4U model:
    • 4 x 3.5" SATA/NVMe hot-swappable HDD/SSD bays
• Networking
  • 2x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1x 1GbE management LAN
• Expansion
  • 1x PCIe 5.0 x16 slot (full-height, half-length)
  • 1x PCIe 5.0 x16 slot (half-height, half-length)
  • 1x PCIe 5.0 x8 slot (half-height, half-length)
  • 1x OCP 3.0 5.0 x16 socket
• Front I/O
  • 2x USB 3.2 Gen1
  • 1x VGA port
  • 1x Power Button/LED
  • 1x Location Button/LED
  • 1x Message LED
  • 1x HDD LED
  • 4x LAN LEDs
    • 1-2: On-board LAN
    • 3-4: OCP socket LAN
• Back I/O
  • 2x USB 3.2 Gen1
  • 1x VGA port
  • 1x Management LAN
  • 2x RJ45 (Ethernet)
  • 1x Port80 LED (Q-Code)
  • 1x Power Button/LED
  • 1x Location Button/LED
  • 1x Message LED
• Power Supply
  • 2x 1600W redundant 80+ Titanium PSUs
  • AC Input: 100-240 12-7A, 50-60Hz
• Dimensions
  • 44.9cm × 84.25cm × 4.39cm
• Weight
  • 14.16kg
