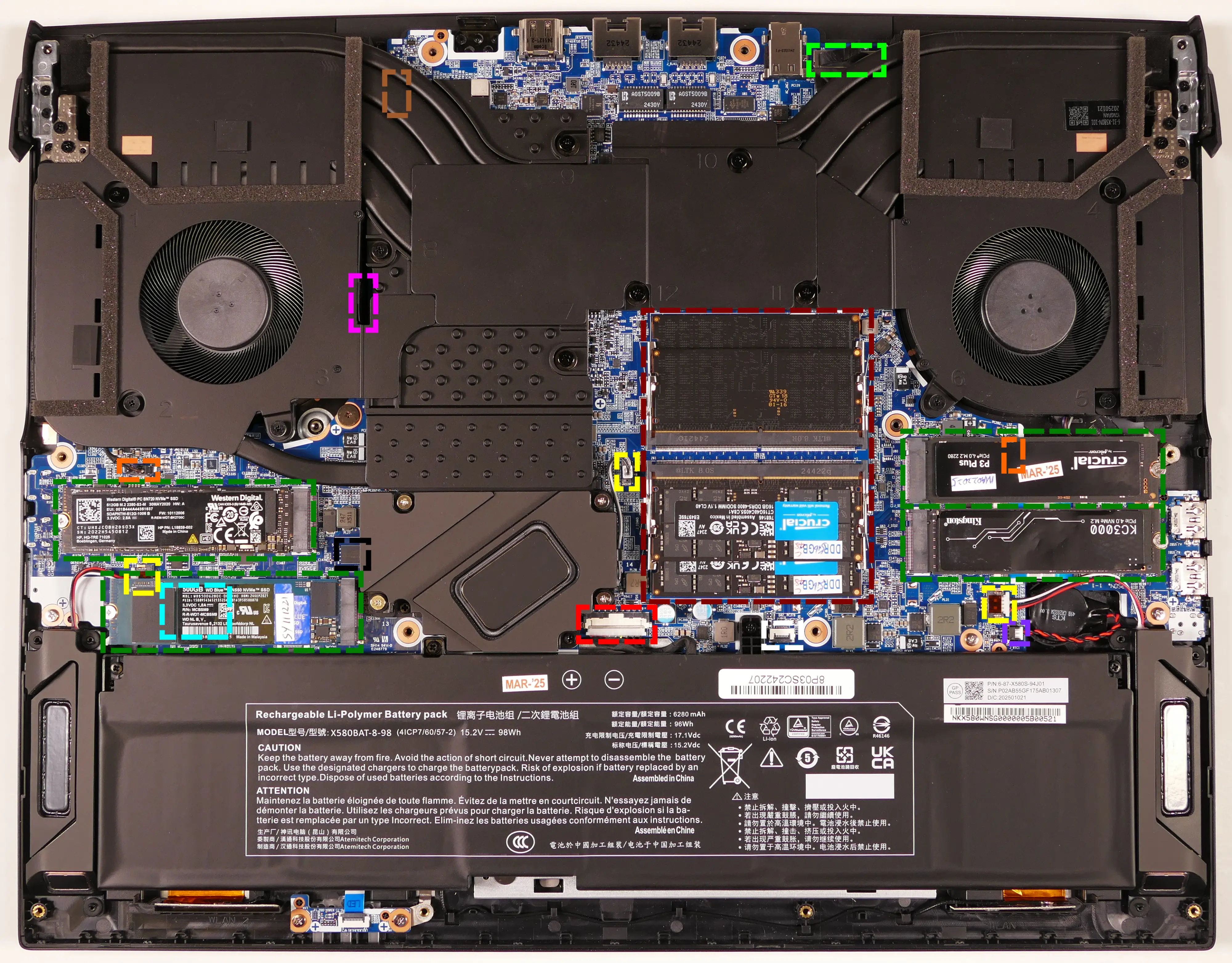

- LCD panel connector is highlighted in light green
- Webcam/microphone connector (under the heatsink) is highlighted in brown

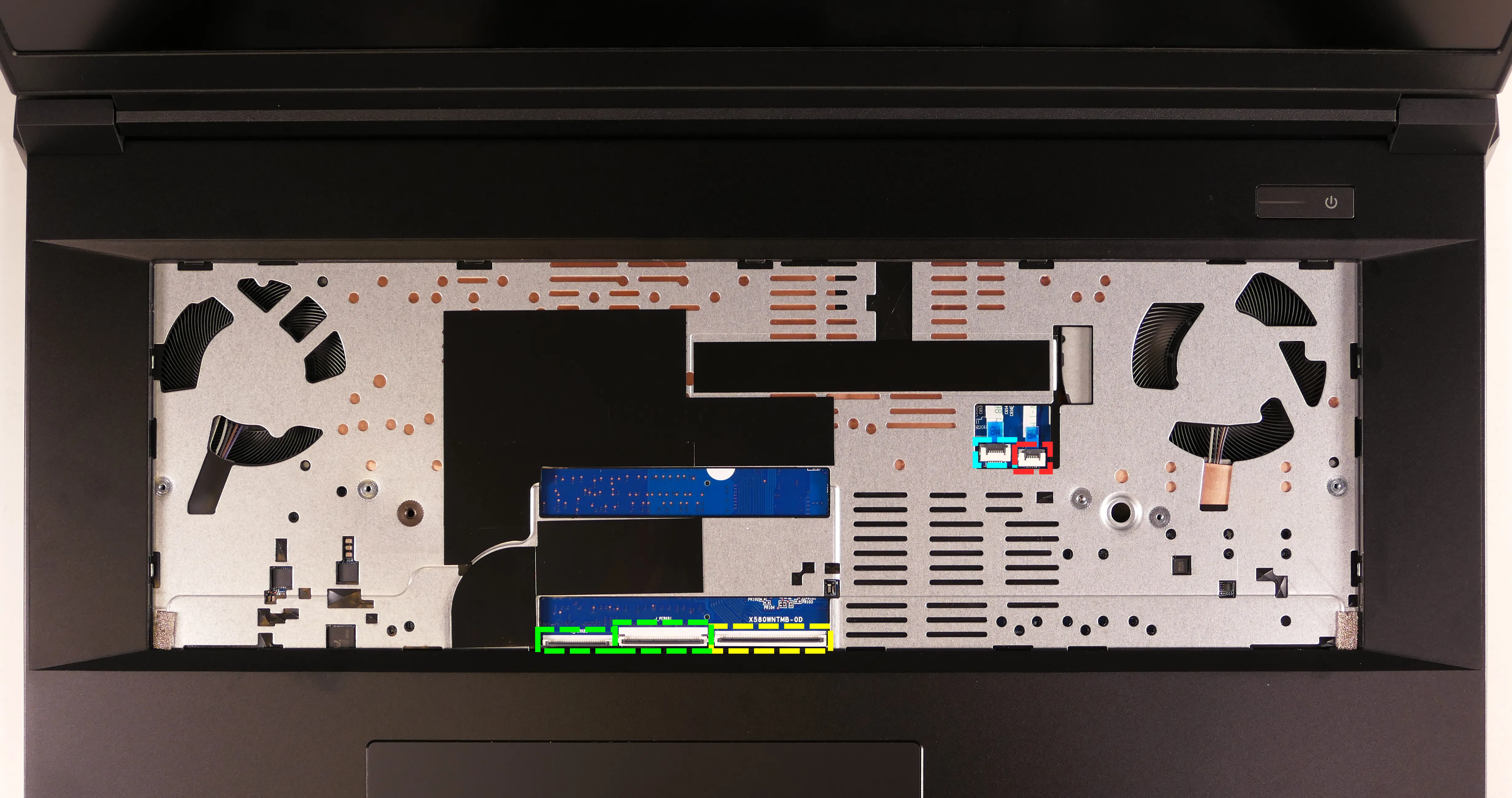

- Keyboard adhesive access point is highlighted in pink
- M.2 SSDs are highlighted in dark green
- All slots support PCIe NVMe Gen 4
- Wireless card (under SSD slot 4) is highlighted in cyan
- Fan connectors are highlighted in orange
- CPU fan connector is located under SSD slot 1
- CMOS battery connector is highlighted in purple
- Speaker connectors are highlighted in yellow
- Right speaker connector (on the left) is partially under SSD slot 4
- BIOS flash chip (U98) is highlighted in black
- Main battery connector is highlighted in red
- Touchpad connector is highlighted in white
- RAM is highlighted in maroon
- Keyboard connector is highlighted in yellow
- Keyboard backlight connectors are highlighted in green
- Back light bar connector is highlighted in cyan
- Power button/LED connector is highlighted in red
